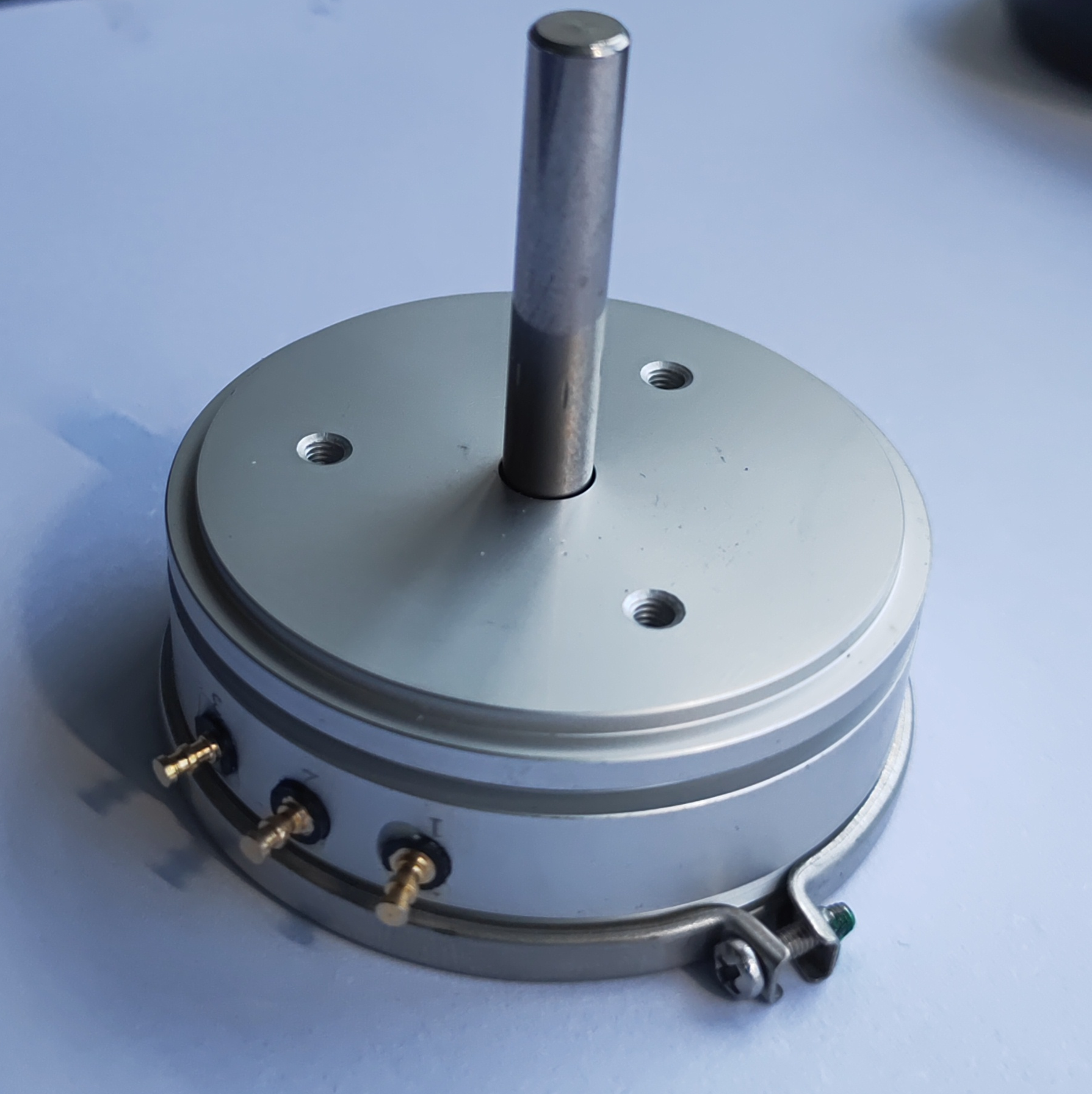

精密电位器

Electrical connections

电气连接

solder pins, gold plated

镀金焊锡针

ELECTRICAL

电气

Electrical Travel

电气行程

355

°

Recommended Supply Voltage

推荐电源电压

5

V(Vref)

Max. permissible applied voltage

最大允许施加电压

30

V

Independent linearity

独立线性

±0.1

%

Hysteresis

磁滞

<1

%

Repeatability

重复性

≤0.01

%

Available resistance values

可用电阻值

1; 2; 5;10

kΩ

Resistance tolerance

电阻公差

± 20

%

Insulation resistance

绝缘电阻

≥10

MΩ

MECHANICAL

机械

Dimensions

尺寸

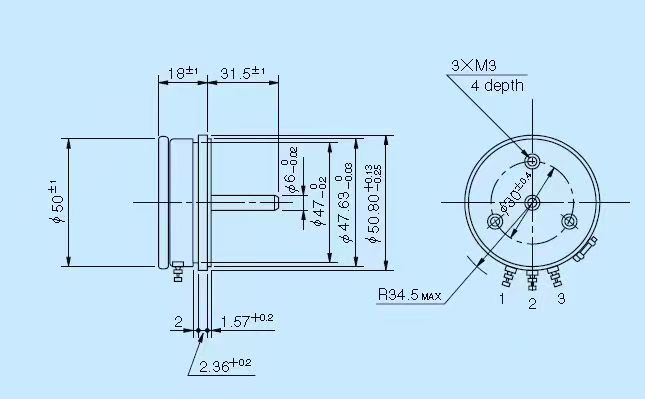

see drawing

Mechanical Travel

机械行程

360°

°(continuous)

Maximum operational speed

最大运行速度

1000

RPM

DURABILITY

耐久性

Vibration抖动

16-22 GRMS random for 20 hrs.

Shock振动

50 g;11 ms

Thermal Shock热冲击

5000 cycles

-40 °C 1hr→100°C 1hr→-40°C

Salt Fog盐雾

96 hrs

with 5% Neutral Salt at 35°C

Dust灰尘

2hrs

48 km/hr Coarse Dust at 80°C

Shock振动

850 g 11 ms

Drop掉落

1hr, 3 times

XYZ each directions from hight

ENVIRONMENTAL

环境

Housing class外壳等级

IP40

IEC 529

Temperature range温度范围

-40...+100

°C

Life寿命

> 100   ×106

cycles
