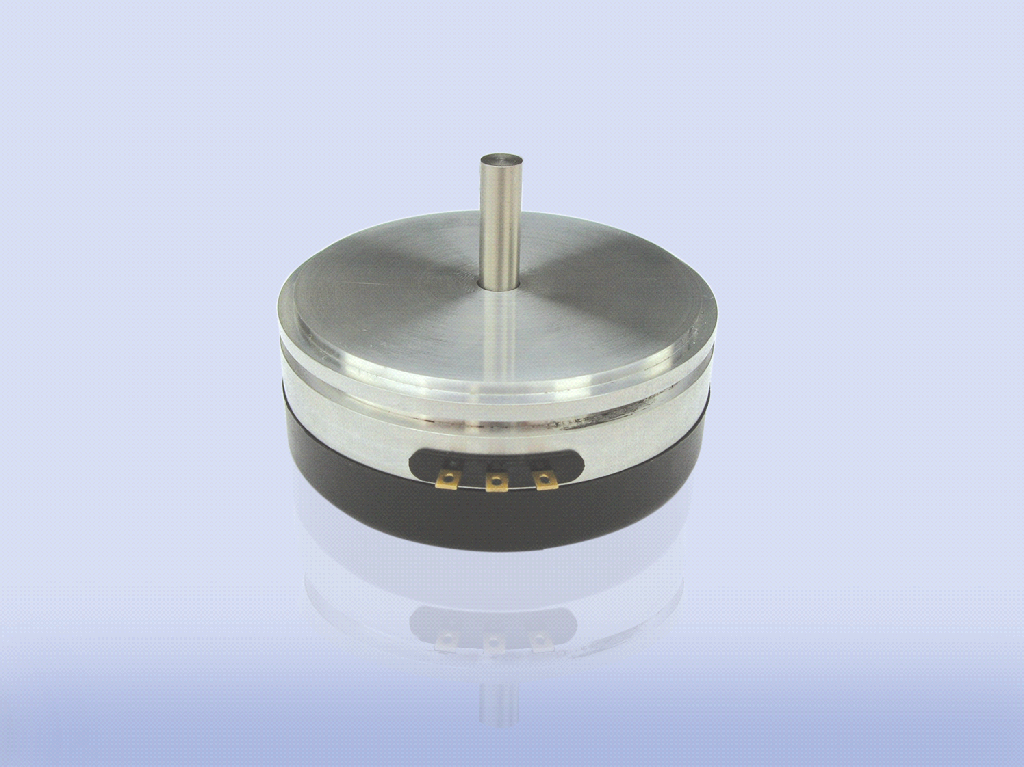

精密角度传感器GMC-R-350-50
品牌 : 意大利VOGANZ
规格 : 精密角度传感器
型号 : GMC-R-350-50
产品详情

Rotary Position Sensor GMC R Series

Precision potentiometer with conductive plastic resistance track for measuring, control and instrumentation applications. The distinguishing features of the GMC R include an all metal case, ball bearings, and conductive- plastic collector track. As a high- precision angular displacement transducer this potentiometer meets all kinds of analog applications.

VOGANZ generic sensors offer customers low cost options with minimal or little tooling investment. Count on VOGANZ Technologies for sensing solutions that add performance and value to products. We serve customers with advanced design and engineering capabilities, flawless quality performance, flexible manufacturing and on-time delivery.

Special versions with different electrical travels and shaft dimensions are available.

Special features

Housing

anodized aluminum

Bearings

stainless steel ball bearings

Shaft

stainless steel

Wiper assembly

precious metal multi-finger wipe

Resistance element

conductive plastic

Electrical connections

solder pins, gold plated

Technical Specifications

ELECTRICAL

Electrical Travel

345;350;355

°

Recommended Supply Voltage

5

V(Vref)

Max. permissible applied voltage

30

V

Independent linearity

±0.1

%

Hysteresis

<1

%

Repeatability

0.01

%

Available resistance values

1; 2; 5;10

kΩ

Resistance tolerance

± 20

%

Insulation resistance

10

MECHANICAL

Dimensions

see drawing

Mechanical Travel

360°

°(continuous)

Maximum operational speed

1000

RPM

DURABILITY

Vibration

16-22 GRMS random for 20 hrs.

Shock

50 g;11 ms

Thermal Shock

5000 cycles

-40 °C 1hr→100°C 1hr→-40°C

Salt Fog

96 hrs

with 5% Neutral Salt at 35°C

Dust

2hrs

48 km/hr Coarse Dust at 80°C

Shock

850 g 11 ms

Drop

1hr, 3 times

XYZ each directions from hight

ENVIRONMENTAL

Housing class

IP40

IEC 529

Temperature range

-40...+100

°C

Life

> 100  ×106

cycles

Mechanical Dimensions

GMC R  XXX   50
